1. Name of workpiece: support legs for table, chair & desk
2. Material of support legs: steel & iron
3. Max hanging size on each hanger: L20mm×W50mm×H800mm
4. Loading capacity on hanging hook: ≤30kg
5. Suggested interval between 2 hangers: 200mm
6. Conveying speed: 1m/min (Adjustable control)
7. Output: 250-280pcs per hour
8. Spraying method: 4 auto spray guns (match on 2 reciprocators) & 2 manual spray guns
9. Heating source: natural gas (Other choices are available: electricity, oil or coal)

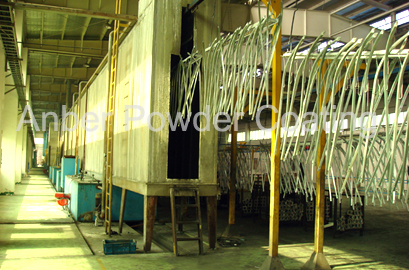

10. Pretreatment system: Vertical shower type

Process flow for support leg powder coating line

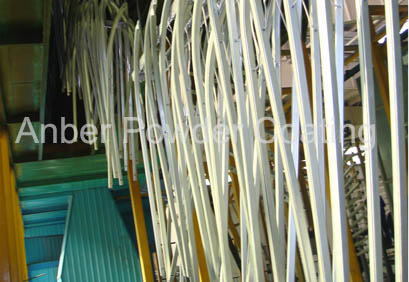

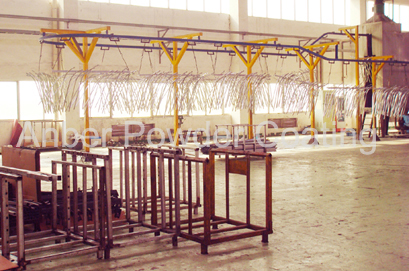

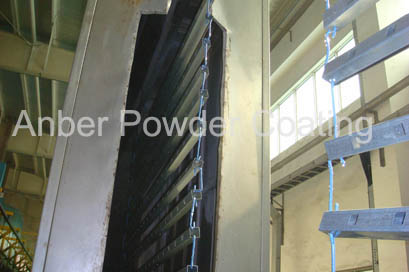

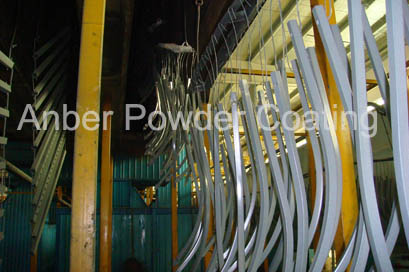

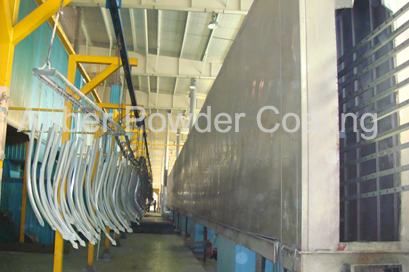

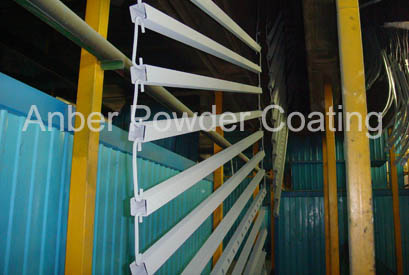

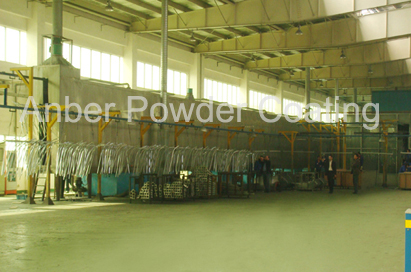

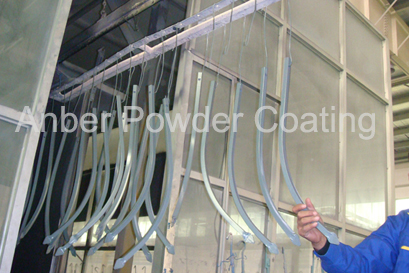

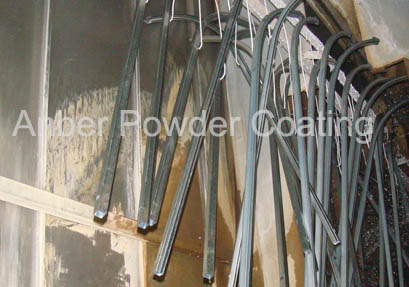

1. Feed your steel table & chair legs on this automatic powder coating line
2. Degreasing stage (50-60 Celsuis for 2 mins)
3. Rinsing stage (Room temperature for 1 min)
4. Phosphating stage (50-60 Celsuis for 2 mins)
5. Rinsing stage (Room temperature for 1-2 mins)
6. Drying off oven to remove surface moisture (100-120 Celsuis for 10 mins)
7. Powder application with spray guns
8. Powder curing (180-200 Celsuis for 20 mins)
9. Finished product discharging
If above parameters cannot meet with your strict coating need, please contact us for more detail. We can make some adjustments or even improvements to suit your actual production conditions.
