Typical Layout Plan

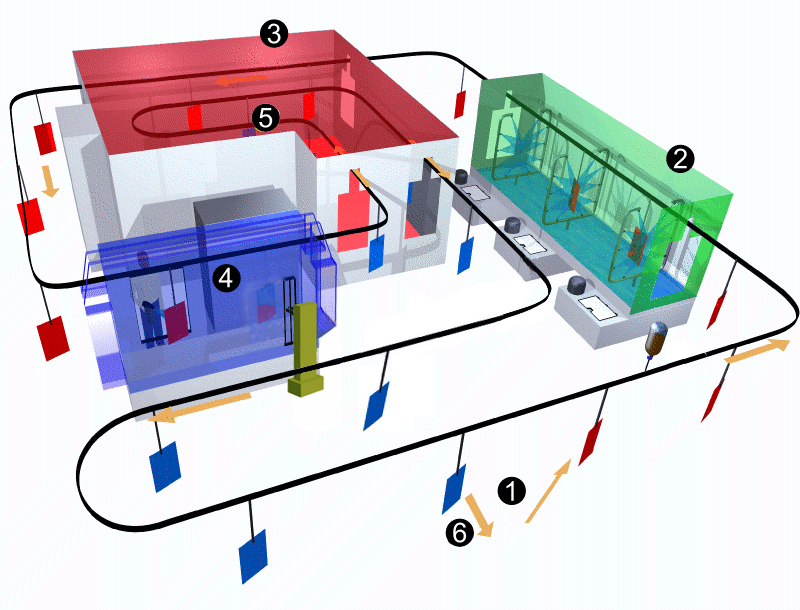

Typical Layout Plan for Vertical Powder coating line
1.Loading area for the workpiece need to be coated
2.Vertical spray shower type pretreatment system
3.Drying off oven
4.Powder spray booth
5.Curing oven
6.Unloading area for finished workpiece

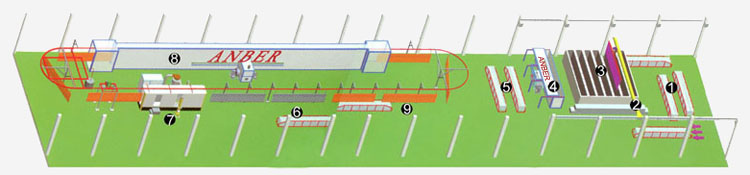

Typical Layout Plan for Horizontal Powder Coating Line
1.Preparation area to load the workpiece on lifting crane
2.Lifting crane for easy access of workpiece to each dipping tank
3.Horizontal immersion tank pretreatment system
4.Drying off oven
5.Unloading area for pretreated workpiece
6.Loading area to overhead conveyor for powder coating line
7.Powder spray booth
8.Curing oven
9.Unloading area for finished workpiece
